FDY-12D Electric hydraulic operating table

Short Description:


Product Detail

Product Tags

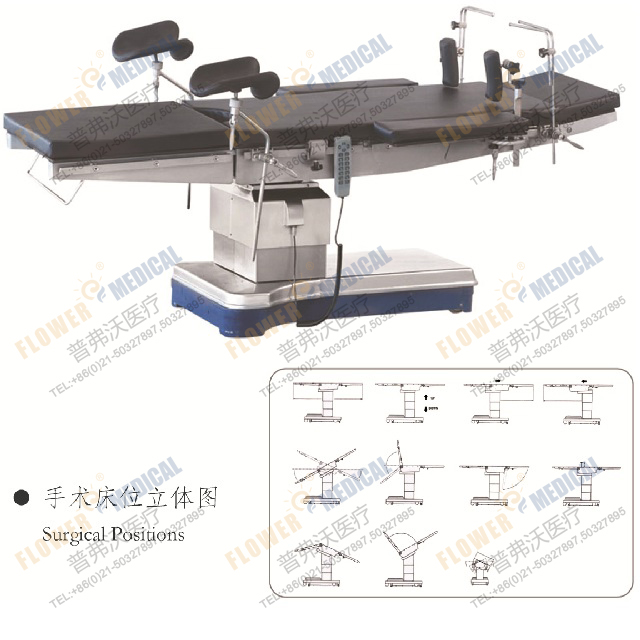

FDY-12D Electric hydraulic operating table:

The electric operating table adopts microcomputer, dual controller control, multi-azimuth control and has the lock switch that prevents the wrong operation. All hydraulic control system adopts imported hydraulic component, which makes the whole machine have low noise and high safety reliability. This operating table is specially designed for ophthalmology and brain surgery, which can be performed by the doctor during operation. The whole table can be moved before and after the whole table, and the entire bit of the c-arm photo or perspective is achieved. Increase the width of the mesa to suit the current clinical needs. The mesa is divided into five movable segments: headboard, shoulder board, backboard, butt plate and leg plate. All the parts of the section are made of X-ray materials, and have a hidden guideway under each board, which can be carried out in a dark box

FDY-12D Electric hydraulic operating table technical data:

Model FDY-12D
Length 2100mm
Max Height 850mm
Width 550mm
Min Height 550mm
Reversed Trdndelenburg ≥20º
Lateral Tilt ≥15°
Back rest adjustment Up≥75° Down≥15°
Leg rest adjustment Down 90°
Head rest adjustment Up≥35° Down≥90°
Shoulder board adjustment 29°
Power 220V, 50Hz(can be customized)

FDY-12D Electric hydraulic operating table components:

Headboard: the pneumatic auxiliary device is easy to operate with the head plate.

Bed board: special compound material bed board, the x-line through rate is high, evenness is good, satisfy the film requirement of the film.

Mattess: once formed mattress, adopt international popular material, streamline appearance.

Line control manipulator: the shape design is fluent, accord with human body engineering, hold comfortable, integrate all control function. Logical self-locking function, prevent the operation of wrong operation.

Bed: special waterproof seal structure design, high quality stainless steel material, anti-fouling and rust prevention, guarantee the best sterilization requirement and anti-collision requirement.

Electric brake: can adjust according to the ground condition, lock, the bed stage does not appear the change of position, ensure the bed platform is firm and safe in the operation.

Standard size stainless steel side rail: can be fitted with various accessories.

Split-type foot plate: removable and disassembled, suitable for obstetrics and urology.

Base: thin base design, the hidden casters, not only ensure enough contact with the ground, to ensure that the operating table, but also can maximize the C – arm filming in surgery.

The bed side shifts: the package moves the translation function, let the perspective film in the operation have no dead Angle.

FDY-12D Electric hydraulic operating table instructions:

1. The product is in addition to domestic original table of all functions, main features: the whole table can be carried out before and after, the longitudinal mobile, realize the C arm X-ray machine a wider perspective

The operating table is a world leader in orthopaedic surgery, thoracic surgery, gastrosurgery and urology. Stable performance. Power system adopts safety voltage motor, low noise, equal price performance.

Four-stage bed panel, the size of the bed is ergonomically, and can easily adjust the various positions in the cervical spine, lumbar spine, spine, etc. The operating table is fully functional and performs well. It is an ideal surgical instrument

For various surgical procedures. The mesa is all made of acrylic plate, suitable for the X-ray machine of c-type arm.

Equipped with a miniature hand controller, it can manipulate the various preset movements of each segment by touch.

The legs can be folded, disassembled and removable, easy to adjust, convenient for urological surgery and the use of the orthopedic tractor

The design of the center column is designed to maximize the stability of the machine, which is made of stainless steel and is beautiful and easy to wipe

There are four foot wheels at the bottom of the operating bed. It is easy for the operation of the bed to move, and also the pedal brake function, which can make the bed stand firm.

FDY-12D Electric hydraulic operating table services:

Control from production process

•We don’t send parts out for pretreatment, all process would be supervised underinspection department

•7 stages pretreatment meet international standard

•Baking at high temperature after power coating to ensurethe paint finish

Control from inspection:

•Process inspections after cold working, acid washing,powder coating and assembling

Final inspection before loading in random checking

•SGS third party inspection available if required

Punctual delivery time:

•We put your order into our tight production schedule, ensure your punctual delivery time.

•Production / inspection report before your order packed.

•Shipping notice/ insurance to you as soon as your order is shipped.

After sales service:

•We respect your feed back after receive the goods.

•We provide 12 months warranty after goods arrive.

•We promise all spare parts available in lifetime use.

•We respond your complain within 48hours.

Professional sales:

•We value every inquiry sent to us, ensure quick competitive offer.

•We cooperate with customer to bid tenders. Provide all necessary document.

•We are a sales team, with all technical support from engineer team.

FAQ

Warranty: 12month

Contact sale person immediately if any question

FDY-12D Electric hydraulic operating table logistics:
